Condensing Unit & Evaporators

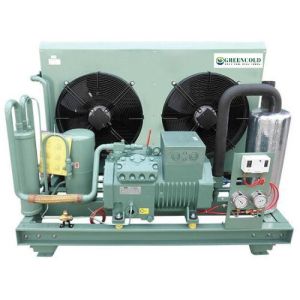

1.Condensing Unit
Our wide range of condensing units models is meant to satisfy all medium and low temperature applications with HFC and HCFC-based refrigerants. It consists semi-hermetic, reciprocating, scroll, liquid injected and vapor injected offering best in class performance, reliability and versatility. The units are designed to withstand the extremes of Indian weather, material handling and road worthing.

We are engineered utilizing advanced technologies and quality parts & components. The electrical parts of these condensing units are confirmed to have zero defects.The condensing units that we offer are also appreciated for their incredible abrasion resistance. These condensing units are guaranteed to have zero physical or mechanical defects, which make them a trusted choice in refrigeration sector. these are avail in indoor as well as outdoor units

FEATURES

• Compressor for three phase and single phase 230V/50Hz with fitted starting device and run capacitor.
• Condenser with grooved copper tubes and Aluminium Fins.
• Generously sized liquid receiver.
• High & Low pressure cut-out including mounting brackets,
• wired to terminal strip, Electrical wiring to the connection box IP65.
• Operating pressure up to 28 bar.
• High cooling capacity with reduced power consumption.
• Full exploitation of the finned package due to the careful matching of the high capacity external rotors fans.
• Fans with especially efficient low noise external rotor motors single phase & three phase.
• Pre Charged with ester oil for R134a and R404A/R507A.
• Designed for extremely high ambient condition upto 65°C/75°C.
• Copper pipe without any elbow coupler in single pipe with CNC bending machines.
• Special epoxy plus polyurethane metallic paint.
• Big size filter dryer, moisture indicator, solenoid valve, oil separator & accumulator.
• Shell & tube condenser made of copper and coppronickel (seawater resistant design) with newly developed tube geometry and low fouling profile on the coolant side.

2.Evaporators / Indoor Unit

• Coil: use new high efficient aluminum wave fin, high heat conductivity, fast water discharge, use high efficient copper pipe, high heat transfer,use new type liquid distributor & uniform frost
• Fan: low cost, high reliability, lower temperature-resistant and low noise external Rotor fans
• Defrost: use electric heating stainless steel pipe, high leak-proof ness at the end, anti-electric leakage and long life
• Casing: use aluminum plate and stainless steel or cold plastic spraying plate, nice appearance and durable
• Maintenance: flexible to disassemble and lean
• Service & food Industry: special design for hotel & food industry
